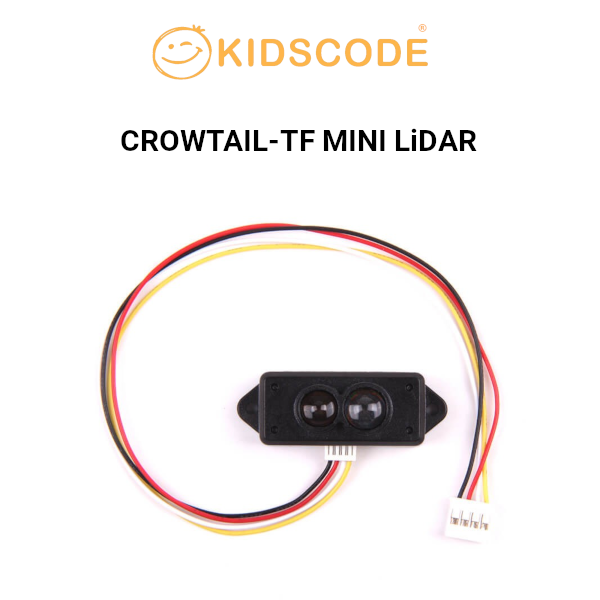

Crowtail- TF Mini LiDAR

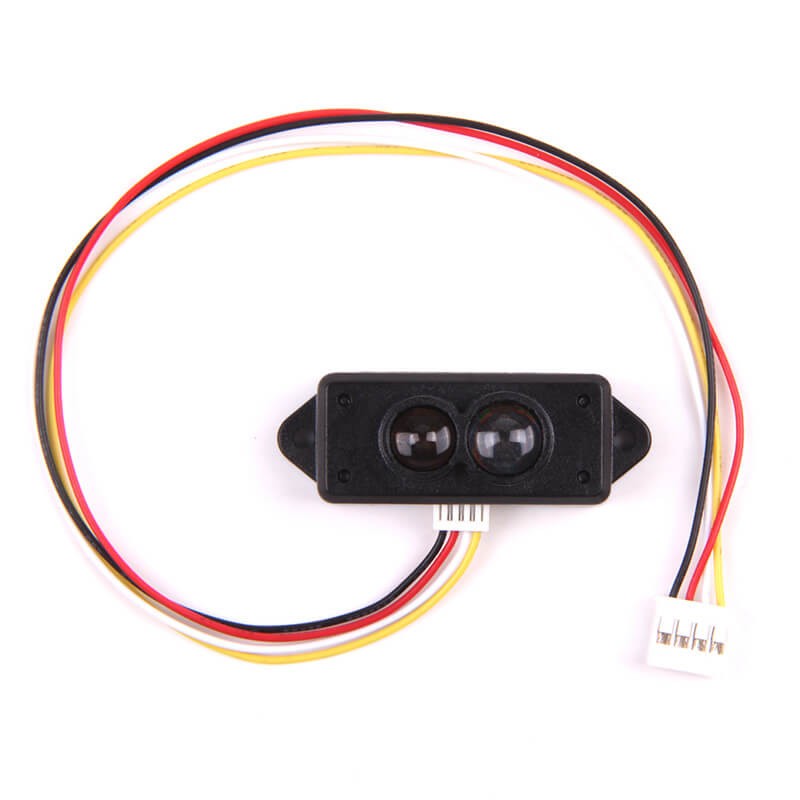

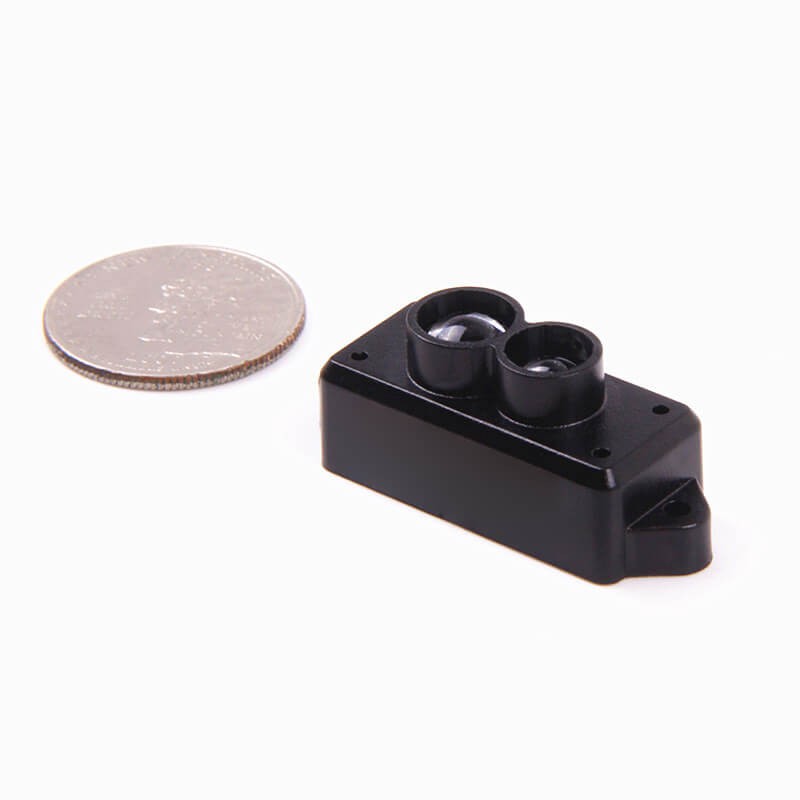

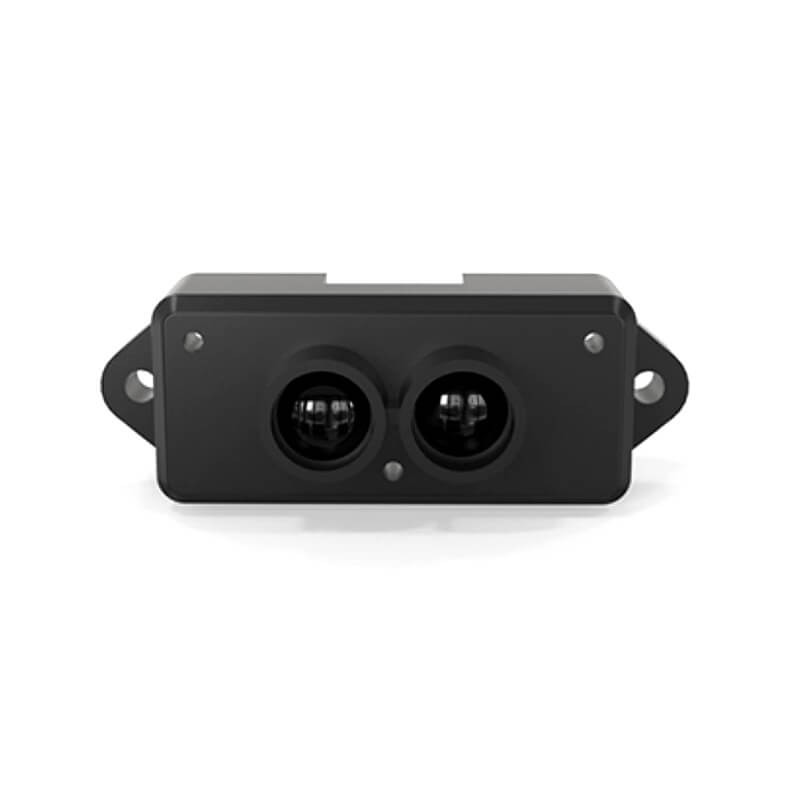

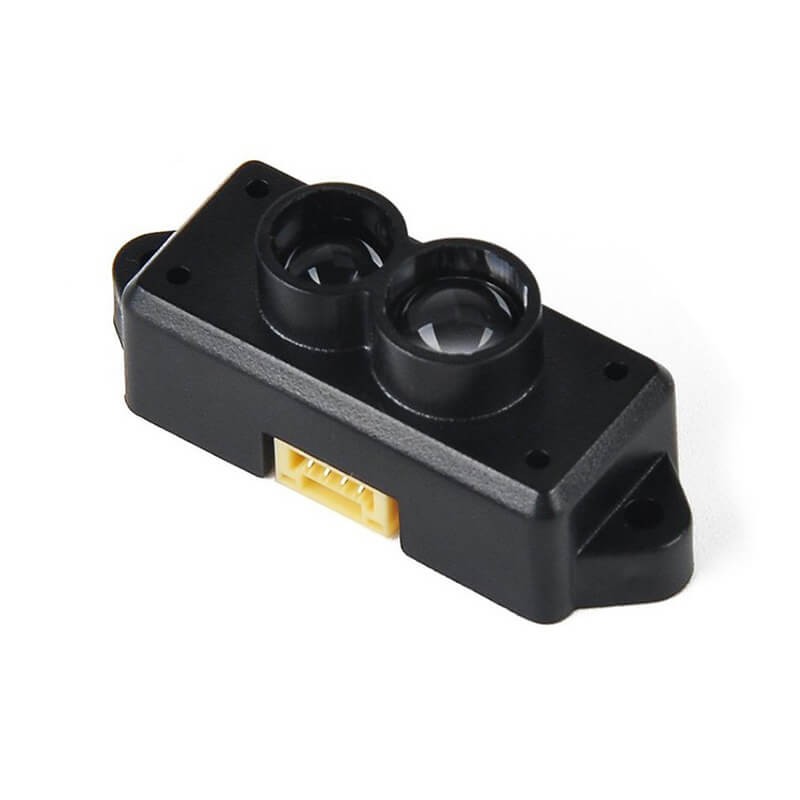

This is a Crowtail- TF Mini LiDAR sensor, which is based on Time of Flight. The range of its measuring distance is 0.3-12m. with its mini size, only 42 x 15 x 16mm, so you can integrate LiDAR into applications traditionally reserved for smaller sensors. The TF Mini LiDAR module is mainly capable of the function of real-time and contactless distance measurement and is featured by accurate, stable and high-speed distance measurement.
It can be used on drone altitude holding and terrain following, machine control and safety sensor, robot distance detection and so on.
Specifications
- Operating range: 0.3-12m
- Maximum operating range at 10% reflectivity: 5m
- Average power consumption: 0.6w
- Application voltage range: 4.5-6v
- Acceptance angle: 2.3°
- Minimum resolution ratio: 1cm
- Frequency: 100Hz
- Accuracy: 1% (less than 6m), 2% (6-12m)
- Distance detection unit: cm
- Laser wavelength: 850nm
- Operating temperature: -20-60℃
- Light sensitivity: 70000lux
- Communication interface: UART
- Laser safety class: FDA Class I
- LED peak current: 800mA
- Electromagnetic compatibility (EMC): EN 55032 Class B
Package list
- Crowtail- TF Mini LiDAR x 1
